ARR-648GD*
Model Featured: ARR-648GD*
Large Image

Please Note Stove is shown above with Island Back Riser that is included standard, and Optional Leg Caps
Cuisine Series 48" Range with 6 Burners and Griddle, Two Ovens
Price: $8,999.00 with Free Shipping Please Call to Order
Model #: ARR-648GD*
Manufacturer: American Range
Free Shipping: Call for lead time 1-877-386-7766
(Select models available for immediate shipment)
Specifications: Click for specification sheet Spec Sheet (Full Specifications) | Owner’s Manual | Accessories
Warranty: Two Year Warranty
Natural Gas Model Available. Please contact us for Propane Gas model Availability.

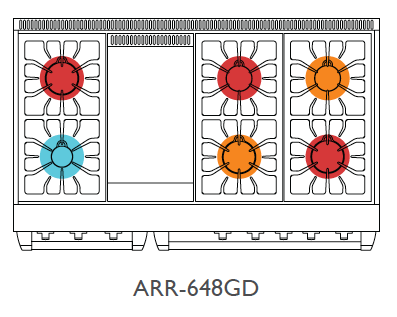

Top View of ARR-648GD*

Free Liftgate DeliveryFree ShippingMade in the USA
  Top Configuration
FEATURES

Cuisine range with 6 sealed gas burners
48" range with one 30 inch oven, and one 18 inch oven, Innovection© oven(s) with IR gas broiler, 6 burners, and griddle section
162,000 total BTU (model # ARR-648GD)
Island back included and installed
*Model # ARR-648GD is shown in above image with optional leg caps

Cuisine Series® Features and Benefits:

RANGE TOP FEATURES

Sealed burners deliver exceptional performance at every setting and lift off to provide easy cleanup.
3 sizes of burners to serve your everyday needs: 17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
Variable infinite flame settings for all sealed top burners.
Automatic, electronic ignition ensures, re-ignition in the event the flame goes out, even on the lowest burner setting.
Continuous commercial-grade cast iron grates allow for easy transfer of pots and pans across the entire cooking surface.
Sealed single piece tooled porcelainized cook top can hold more than a gallon of spills.
Analog controls provide easy, push and turn operation.
Blue light indicates oven functions.
Heavy metal knobs with chrome bezels.
Stainless steel Island Back trim included and installed.

OVEN FEATURES

Multiple functions include: Standard Bake, Convection Bake, Infrared Broil and Fan modes.
Convection System optimizes uniform air flow.
Two chrome plated heavy duty racks with 4 positions on heavy chrome side supports.
Accommodates full size commercial sheet pan.
Front panel switch controls oven lighting for optimal visibility.
Oven front construction is a durable, precision-made one piece frame.

CONVECTION OVEN TECHNOLOGY

Balanced turbulent heat distribution is essential when baking, roasting, and dehydrating food
The American Range convection oven technology features a convection motor and louvered side panels to enhance uniform heat distribution throughout the large oven cavity.
The strategic placement of the convection fan ensures consistent heat distribution even when challenged with cooking the largest turkey, ham or roast.
CONVECTION OVEN IS GREEN TECHNOLOGY: The highly efficient design of the Convection Oven uses less gas versus a standard oven.

Customize with designer or custom colors ACCESSORIES & OPTIONS
Island Back (included and installed) Chrome Grooved Griddle Plate
Island Back (welded style) Chrome Griddle with Flavor Separator
4" Stub Back Porcelainized Broiler Pan
20" High Back with Shelf Cooktop Cover drip tray
Curb Base (S/S) Porcelainized Top
Stainless Steel Leg Caps Colored Porcelainized Top
Casters Designer Color Kit
12" Cutting Board Custom Color kit
Griddle Cover Red Knobs
Grill Cover (Char Broiler cover) Dark Red Knobs
Griddle Plate Matching Ventilation Hoods
Chrome Flat Griddle Plate Ventilation System

Cuisine Burner Design
American Range Residential Range Options and Accessories
Performer Series Residential Range Options and Accessories
Removeable Griddle Accessory by American Range Residential Recommended Add-On Griddle Accessories - Chef King by Rocky Mountain ›

Griddle Accessory
Optional Features:

Contact us for more information on optional features and accessories. 1-877-386-7766

Free Shipping on all Professional Ranges & Ovens • Lowest Price Guaranteed on all American Range Appliances
Contact Us: 1-877-386-7766 or 415-332-5840

WARRANTY
Two Year Warranty. Lifetime Limited Warranty on some components. Please contact us for extended warranties. 1-877-386-7766
